HDMI/USB Microscope Camera TUCSEN Truechrome 4K Pro

Ready for shipping

HDMI/USB Microscope Camera TUCSEN Truechrome 4K Pro

One of the high-quality models from the manufacturer TUCSEN from the high-end microscope cameras segment. With a high-quality SONY IMX485LQJ-C sensor, 4K resolution, powerful processors and sophisticated software functions, the camera achieves convincing performance even under the most difficult lighting conditions, such as in darkfield or fluorescence microscopy.

Especially for industrial and quality assurance users, the camera offers the possibility to carry out measurements on the object in HDMI mode. Further, using Live-EDF (extended depth of field) and Live-Stitching< /strong> to enables you creating larger and sharper images at greater depth.

Live Stitching: If you use this function, when the specimen is moved, the software will merge the partial images in real time (stitching)

Live EDF: If you use this function, the sharp areas of the partial images are merged by the software when the focus is changed (auto-extension of depth of field)

Network transmission: The camera has a built-in Ethernet adapter. It can be connected to the local LAN and controlled from a PC connected to the same LAN segment.

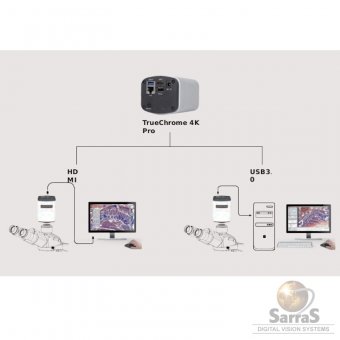

Multi-signal output: The camera can be connected directly to an HDMI monitor or to a PC/MAC (via the USB 3.0 port). In both modes, the camera offers very high frame rates, ideal for tracking and recording microscopic movements.

Flexible exposure times: In addition to auto exposure, you can set the exposure time and the gain manually. The exposure time can be set up to a maximum of 1 second.

Zoom - Mirror - Compare: Both the on-screen menu (HDMI mode) and the PC application offer both a zoom function and the option of mirroring the image horizontally/vertically. You can also use the software to split the screen vertically into two halves: one half shows the live image and the second an existing image from your image gallery in order to compare preparations.

Zoom and compare function functions

Built-in Mouse Control in HDMI mode, the included mouse can be connected to an USB port of the camera. You can then use the mouse to activate the on-screen menu and use it to take pictures and videos and adapt all camera settings.

Mouse Control Function

Advanced Measurement Functions: With a range of built-in measurement functions, the Truechrome AF is not only a microscope camera with excellent image quality, but also a powerful measurement tool.

Tucsen Metrics measurement function

The measurement function includes measuring the length of freehand lines, rectangles, polygons, circles, angles, point-to-point distance, perimeter and areas of closed areas, etc.

Tucsen Metrics measurement function

Before the measurement, the camera can be calibrated and the results can then be exported in text or Excel format.

Tucsen Metrics measurement function

Fast Video-Recording: The camera records at 30 frames/second at 3840x2160 in HDMI mode

Built-In Player: Pictures and videos that have already been taken are stored on the camera (on a connected USB stick. You can browse through them and have them played back by the camera on the HDMI monitor - without a PC! <


  • Sensor: SONY IMX485LQJ-C (1/1.2", CMOS)
  • Refresh rate (via USB 3.0): 20fps (3840x2160, 8MP)
  • Refresh rate (via HDMI or LAN): 30fps (3840x2160, 8MP)
  • Max. Resolution of image recording on the PC: 3840x2160 (TIFF/JPG/PNG/DICOM)
  • Max. Image capture resolution in HDMI mode: 3840x2160 (TIFF/JPG)
  • Exposure time: adjustable max. 1 sec
  • White balance: automatic or manual

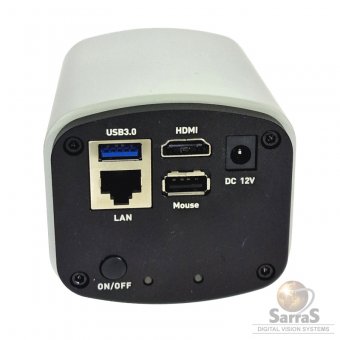

  • Outputs: HDMI, USB 3.0 (PC), USB stick
  • Compatibility: Windows 7/10/11 (32bit/64bit)/Mac
  • Connector: C-Mount
  • Weight (g): 505
  • Dimensions (mm): 105.7 x 78 x 70.8

Scope of delivery

  • Camera
  • USB stick with Mosaic software (Windows and macOS)
  • User Guide HDMI-Mode (German, English), User Guide Mosaic Software (English)
  • HDMI cable
  • USB 3.0 cable
  • Power adapter 12V/2A
  • USB mouse
  • USB flash drive with software

Manufacturer's Guarantee

  • 18 months from the date of purchase (EU)
