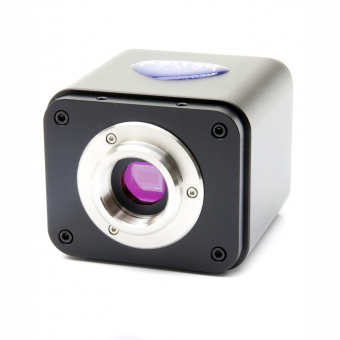

HDMI/USB Microscope Camera OPTIKA C-HP4
The C-HP4 model is the right choice for users who have high quality requirements for image quality on the one hand and want to remain flexible in terms of system compatibility on the other. Good image quality is guaranteed by the built-in SONY CMOS color image sensor, which enables recordings with a resolution of 3840 x 2160. In terms of compatibility, this microscope camera can be operated both with and without a PC and used in the following operating modes: HDMI (without PC) or USB (with Windows PC).
The most important functions of the camera can be found below - functions marked with (*) are only available when using the included Windows software - and not in pure HDMI mode.
Technical Specifications
- Sensor: SONY CMOS, color sensor, size: 1/1.8"
- Image capture resolution: 3840×2160
- Refresh rate at 3840x2160 (HDMI, USB): 30,20 fps
- Exposure time: 0.04 msec - 2 sec
- White balance: manual, automatic, automatic with selection of a reference area (Region Of Interest)

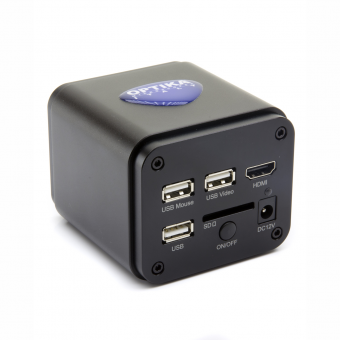

- Outputs: HDMI, USB 2.0
- Compatibility: Windows 7,8,10 (32/64 Bit) and 11
- Connection: C-Mount
- Weight (without packaging in grams): 500
- Dimensions (cm): 8.8 x 7.8 x 6.5
- Technical data sheet (PDF): Download under "Media" tab
Package Contents
- Microscope camera
- PROVIEW software for Windows
- HDMI cable 1.5m
- USB cable 1.8m
- Power supply 12V/1.5A
- Wireless mouse
- SD card 16GB
Manufacturer's Warranty
- 24 months from date of purchase (EU)
