USB Microscope Dino-Lite AM73115MZT

Product number: DNL-ID-AM73115MZT
Delivery Time: 1 week

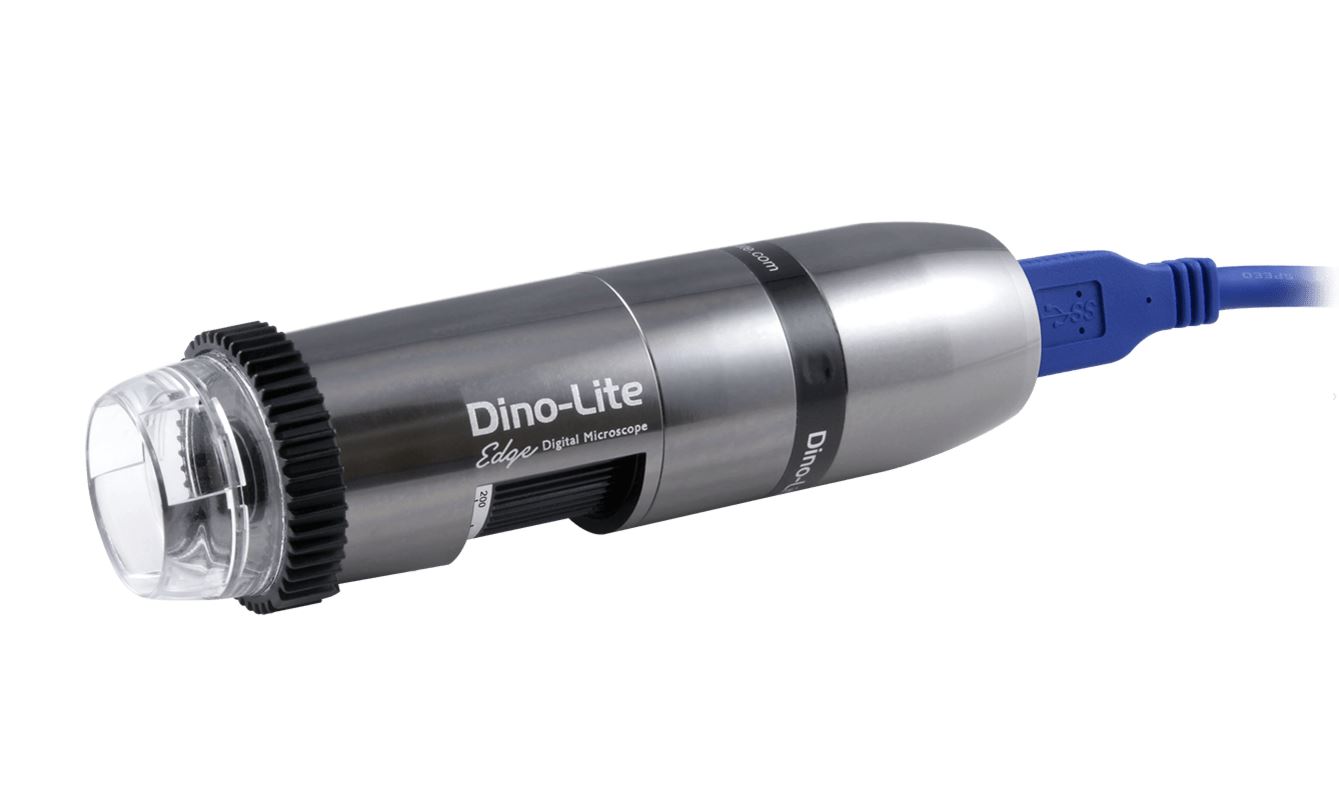

Dino-Lite AM73115MZT USB Microscope

Main Features

With the use of the USB 3.0 connection the AM73115MZT is able to capture smooth and high-quality images. The Edge series optics and the special feature Flexible LED Control (FLC) makes the AM73115MZT the best choice for the more demanding applications.

Magnification: 20-220x

High Resolution (5MP): This model has a 5 megapixel sensor for crystal clear images, even under higher magnification. Because of the very high resolution, it is the ideal solution for displaying microscopic images on large screens or using the microscopic images for printing.

Polarizer: The built-in adjustable polarizer reduces glare and reflection on shiny objects.

USB 3.0 Interface: Taking advantage of the USB 3.0 interface, this model can capture fast images - at a maximum speed of 45fps at 1280x960 or 15fps at 2560x1920.

Metal Housing: Protects the microscope from damage in tough environments.

Flexible LED Control:The light intensity of the LEDs can be adjusted through the software on six different brightness levels - the selected LED brightness level affects all switched-on LEDs. Furthermore, a sector control of the LEDs is available: the eight LEDs are divided into 4 sectors (two adjacent LEDs form a sector). You can turn each sector on and off separately. FLC-enabled Dino-Lite models achieve the greatest flexibility in terms of lighting control.

For a comparison of all Dino-Lite models and features click here to visit our Dino-Lite product information page.

Software Features

A professional, reliable software environment is essential when working with computer equipment like an USB microscope. All Dino-Lite USB products are equipped with an in-house developed software suite with measurement capabilities. The Dino Capture software is continuously developed, is free of charge for Dino-Lite users and has an automatic update feature.

Product Type
USB Microscope
5,0 MP
Long Working Distance
Special Features
High-Speed USB 3.0 Interface, Flexible Light Control
